Measuring, controlling and generating flow – for air and gases

CoM4 measurement systems and calibration units

The CoM4 systems measure, control and generate volumetric and mass flows of air and gases. They record differential pressure, absolute pressure, temperature and humidity; the controller computes the flow from these and runs test sequences by itself. They are used as test equipment in production, as a reference in the laboratory and as a standard in calibration.

CoM4 measurement systems and calibration units
  • > 12 gases in the gas property database of the CoM4.SYS controller, plus air; density, viscosity and Reynolds number are computed along with the flow
  • 19 inch benchtop or rack housing for all systems, with 3 to 10 height units depending on the measuring task
  • DAkkS Factory or DAkkS calibration certificate from our calibration laboratory, accredited to DIN EN ISO/IEC 17025 under D-K-17589-01-00

The systems at a glance

Select a system – the window shows technical data, documents and the request form.

  • Evaluation unit for measuring sections

    CoM4.Flow-Eco/Smart/Pro

    The evaluation unit for laminar flow elements

    Flow accuracy
    < 0.3 / 0.25 / 0.2 % of reading (Eco/Smart/Pro)
    Inlet pressure
    0.8 – 1.2 bar abs. (LP) · up to 7 bar abs. (Smart-HP, Pro-HP)
    Measuring element
    Laminar flow element; nozzle or orifice as a special case
  • Measuring and controlling flow

    CoM4.Flow-Quattro

    Four laminar flow elements in one instrument, turndown 1:10,000

    Flow range, air
    2 – 20,000 NmL/min
    Turndown ratio
    1:10,000
    Accuracy
    < 0.2 % of reading
  • Volumetric flow standard

    CoM4.Gallery

    Critically operated, binary-graded nozzles generate defined volumetric flows

    Flow, suction mode
    approx. 5 mL/min – approx. 35 L/min
    Turndown
    1:200 per unit
    Accuracy
    < 0.1 % of reading
  • Measuring and controlling up to 20 bar

    CoM4.FlowControl

    Measures the flow via laminar flow elements and controls it to dynamic setpoints

    Measuring range
    1 mL/min – 64 m³/min
    Accuracy (air)
    ≤ 0.3 – 0.5 % of reading · high end ≤ 0.1 % of reading
    Test pressure
    up to 20 bar

Common to all systems

Display
4-inch touch display with graphical user interface
Interface
Ethernet
Humidity of medium and environment
0 – 100 %, non-condensing
Ambient pressure
atmospheric
Media
clean, dry, non-condensing, non-corrosive gases and air
Purity requirements
ISO 8573-1; 5 µm filter and oil/water separator in the compressed air supply required

CoM4 system

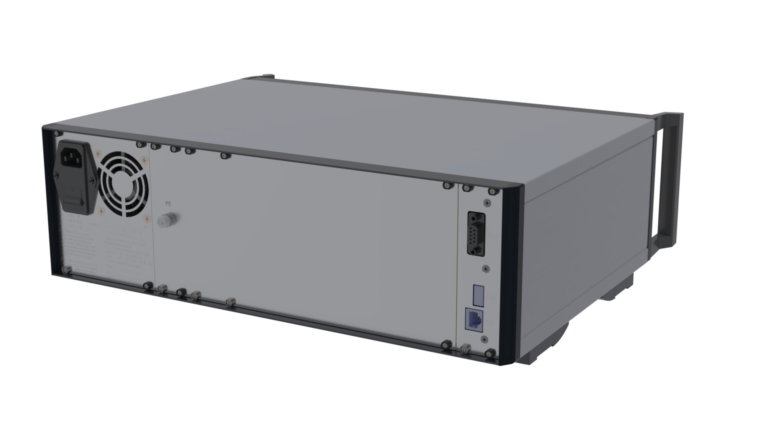

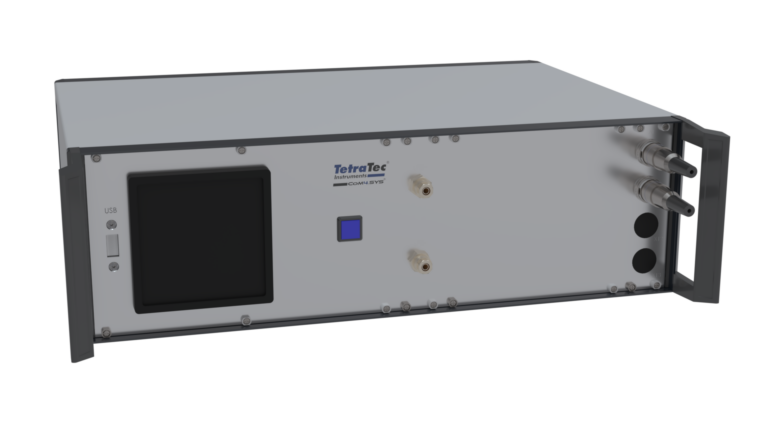

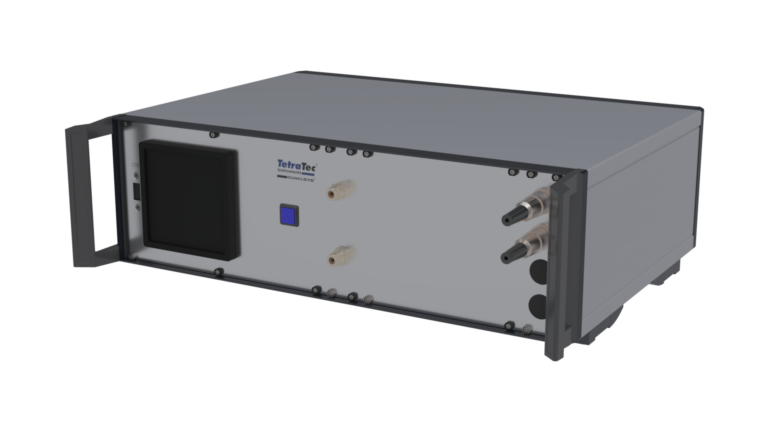

CoM4.Flow-Eco/Smart/Pro

CoM4.Flow-Eco/Smart/Pro
Flow accuracy
< 0.3 / 0.25 / 0.2 % of reading (Eco/Smart/Pro)
Inlet pressure
0.8 – 1.2 bar abs. (LP) · up to 7 bar abs. (Smart-HP, Pro-HP)
Measuring element
Laminar flow element; nozzle or orifice as a special case

Overview

The CoM4.Flow-Eco/Smart/Pro is the evaluation unit of a flow measuring section. It records differential pressure, absolute pressure, temperature and, on request, humidity, and computes the volumetric or mass flow from these; the standard differential pressure device is a TetraTec laminar flow element.

For the laminar flow element the instrument uses the linear relationship according to Hagen-Poiseuille; the calibrated characteristic curve of the element in use corrects the remaining deviation. SAO and Venturi nozzles or MBL orifice measuring sections can be connected as a special case and are then evaluated with the respective standard-compliant method. Accuracy and measurement uncertainty apply to the chain of evaluation unit and a TetraTec laminar flow element, each over a measuring span of 1:10 and for air; for other gases, the value in the calibration certificate applies.

Main features

  • Connectable: laminar flow elements of the S and R series; SAO and Venturi nozzles as well as MBL orifice measuring sections as a special case
  • Characteristic curves of more than ten elements stored in the instrument; when the element is changed, the matching curve is selected
  • Up to two measuring sections at once, evaluated continuously or under program control
  • Test programs run by themselves in the instrument, with mean values and statistics for all measured variables
  • Volumetric, mass and standard volumetric flow from the same measurement
  • Browser interface with y/t graph and diagnostics

The six versions

Eco, Smart and Pro differ in accuracy and pressure sensors, LP and HP in the permissible absolute pressure. Housing, operation and interfaces are identical; the values are given in the technical data.

LP – low pressure inlet pressure close to atmospheric HP – high pressure inlet pressure above atmospheric
Eco Accuracy < 0.3 % of reading
Differential pressure 2 – 20 mbar
Humidity as an accessory
CoM4.Flow- Eco-LP-01 0.8 – 1.2 bar abs. CoM4.Flow- Eco-HP-01 0.8 – 4 bar abs.
Smart Accuracy < 0.25 % of reading
Differential pressure 2 – 20 mbar, PDP2 pressure sensors
Humidity as an accessory
CoM4.Flow- Smart-LP-01 0.8 – 1.2 bar abs. CoM4.Flow- Smart-HP-01 0.8 – 7 bar abs.
Pro Accuracy < 0.2 % of reading
Differential pressure 2 – 60 mbar
Built-in humidity sensor
CoM4.Flow- Pro-LP-01 0.8 – 1.2 bar abs. CoM4.Flow- Pro-HP-01 0.8 – 7 bar abs.

Technical data

Flow: accuracy
Eco: < 0.3 % of reading
Smart: < 0.25 % of reading
Pro: < 0.2 % of reading
Flow: uncertainty (k = 2)
Eco: ±1.5 % of reading
Smart: ±1 % of reading
Pro: ±0.65 % of reading
Flow range
depends on the laminar flow element in use;
TTI laminar flow elements between 1 mL/min and 64 m³/min
Differential pressure: calibrated range, max. deviation
Eco: 2 – 20 mbar, 0.075 % of reading, min. 1.0
Smart: 2 – 20 mbar, 0.05 % of span
Pro: 2 – 60 mbar, 0.030 % of reading, min. 0.75
Absolute pressure: inlet pressure = calibrated range
LP (Eco, Smart, Pro): 0.8 – 1.2 bar abs.
Eco-HP: 0.8 – 4 bar abs.
Smart-HP, Pro-HP: 0.8 – 7 bar abs.
max. deviation Eco, Pro: 0.15 % FS
max. deviation Smart: 0.05 % of span
Temperature: calibrated range, max. deviation
5 – 50 °C, 0.35 °C
Humidity
Pro: humidity sensor 0 – 100 % RH, calibrated 5 – 90 % RH, max. deviation 3
Eco, Smart: as an accessory with HUMTMP humidity/temperature combination sensor, 0 – 100 % RH
Differential pressure sensor: range, overload
Eco (PDP1): 0 – 20 mbar, 6 bar
Smart (PDP2): 0 – 20 mbar, plus to minus 10 bar, minus to plus < 1 bar
Pro: 0 – 60 mbar, 10 bar abs.
Absolute pressure sensor: range, overload
Eco-LP (PDP1), Pro-LP: 0 – 1.2 bar, 3 × max. measuring range
Eco-HP (PDP1): 0 – 4 bar, 8 bar abs.
Smart-LP (PDP2): 0 – 1.25 bar, 2 × measuring range
Smart-HP (PDP2): 0 – 7 bar, 2 × measuring range
Pro-HP: 0 – 7 bar, 12 bar abs.
Temperature sensor
0 – 75 °C, max. 75 °C (Eco: PT 100)
Inlet temperature
0 – 50 °C
Ambient temperature
−10 – +50 °C (without enclosure)
Protection class
IP20
Permitted gases
Air and inert gases (e.g. N₂); clean, dry, non-condensing, non-corrosive
Flammable and oxidising gases
not permitted (e.g. H₂, O₂); special version on request via Engineering
Standards and directives
EN 61010-1
Housing
19" 3 U benchtop housing with handles
462 × 148 × 316 mm
Process connections
Plastic hoses with union nuts 4/6 mm
Display
4-inch graphical user interface
Power supply
90 – 260 VAC, 50/60 Hz, max. 80 W
Electrical connections
IEC power connector, circular connector (Lumberg)
Communication
Ethernet, USB 2.0 (Type A, for updates)
Controller
CoM4.SYS
Options
Benchtop or rack housing, with or without handles
Sensor connections on the rear instead of the front

Downloads

CoM4.SYS – operation and parameters

Your request

Select what applies – your selection is then entered in your message in the contact form.

  1. Gas typeair and inert gases; flammable and oxidising gases only in a special version
  2. Versionaccuracy class and absolute pressure range
  3. Differential pressure devicethe standard is a laminar flow element; nozzles and orifices only as a special case
  4. Housing
  5. Calibration certificate

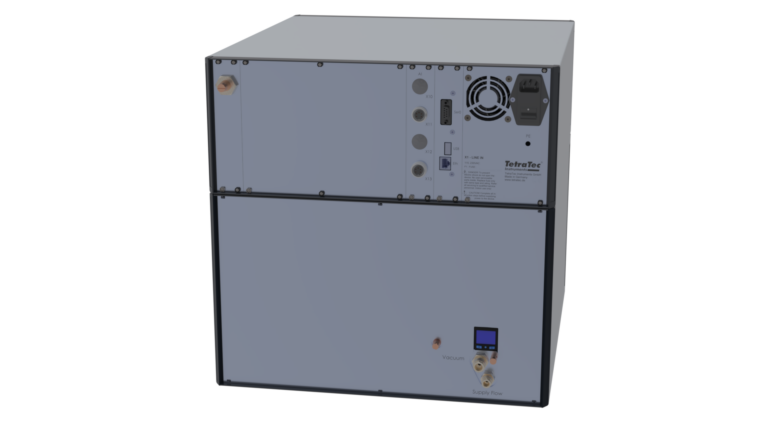

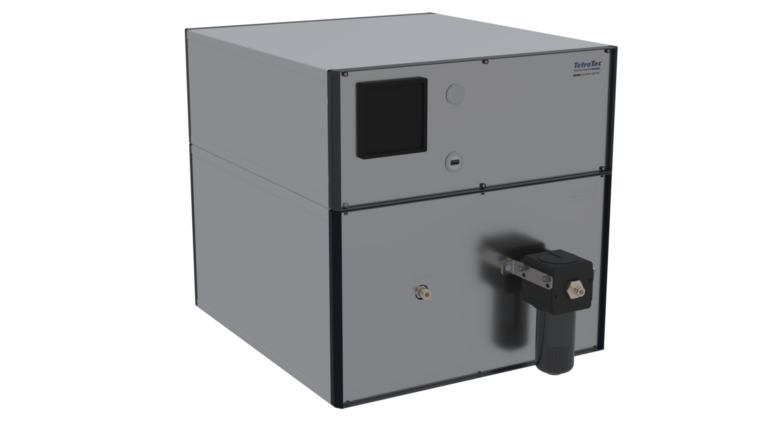

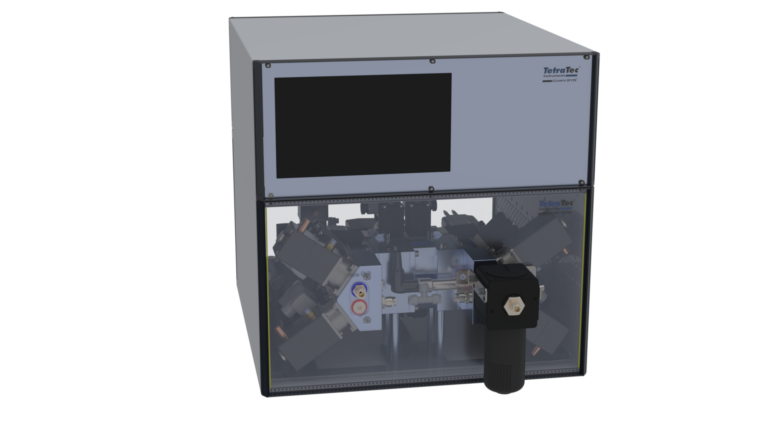

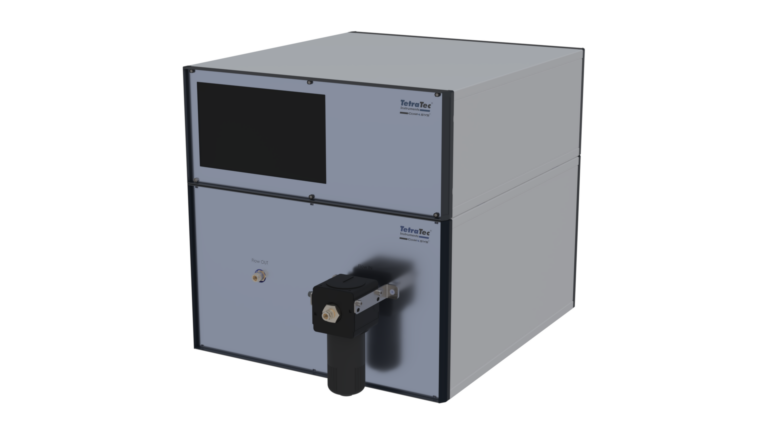

CoM4.Flow-Quattro
Flow range, air
2 – 20,000 NmL/min
Turndown ratio
1:10,000
Accuracy
< 0.2 % of reading

Overview

The CoM4.Flow-Quattro measures, controls and doses the standard volumetric flow of air and gases. Four cascaded laminar flow elements are permanently installed in the instrument; the controller switches automatically to the element that matches the current flow.

In measuring mode the unit under test controls pressure or standard volumetric flow itself; the instrument measures the standard volumetric flow at the outlet of the unit under test and serves as the reference. In control mode the instrument sets a specified standard volumetric flow and holds it while the unit under test behaves passively – for example in calorimetric and comparative methods. Absolute pressure, temperature and humidity enter the gas property calculation.

Main features

  • Operation with inlet pressure, against atmosphere or under vacuum
  • Addressable from the higher-level control system
  • For calibrating flow and pressure sensors, leak and functional testing and comparative measurements in the laboratory

Technical data

Air flow: calibrated range
2 – 20,000 NmL/min
standard conditions 1,000 mbar, 20 °C, 0 % RH
accuracy < 0.2 % of reading
uncertainty (k = 2) < 0.75 % of reading
Differential pressure: calibrated range, accuracy
1 – 50 mbar, 0.025 % of reading, min. 0.5 Pa
Absolute pressure: operating pressure = calibrated range
0.8 – 1.2 bar abs., 0.1 % FS
Temperature: calibrated range, accuracy
0 – 50 °C, 0.1 °C
Humidity: calibrated range, accuracy
10 – 75 % RH, 2 % RH
Differential pressure sensor
0 – 50 mbar, overload 4 × max. measuring range
Absolute pressure sensor
0 – 1.2 bar, overload 2 × max. measuring range
Temperature sensor
PT100, 0 – 50 °C
Humidity sensor
HUMTMP, 0 – 100 % RH, do not submerge in liquids
Supply pressure
compressed air min. 5 bar abs.
vacuum supply 0.1 bar abs.
Inlet temperature
0 – 45 °C
Ambient temperature
0 – +50 °C
Protection rating
IP20
Flammable gases
not permitted
Standards and directives
EN 61010-1
Enclosure
19" 10 U desktop enclosure without handles
449 × 444 × 495 mm (594 mm incl. filter)
Process connections
Plastic hoses with 8 mm union nuts
Power supply
90 – 260 VAC, 50/60 Hz, max. 80 W
Electrical connections
IEC connector, round connector (Lumberg)
USB
USB 2.0 (Type A, for updates)
Controller
CoM4.SYS
Options
Desktop or rack enclosure, with or without handles

Downloads

CoM4.SYS – operation and parameters

Your request

Select what applies – your selection is then entered in your message in the contact form.

  1. Operating mode
  2. Gas typeclean, dry, non-flammable, non-corrosive gases
  3. Calibration certificate

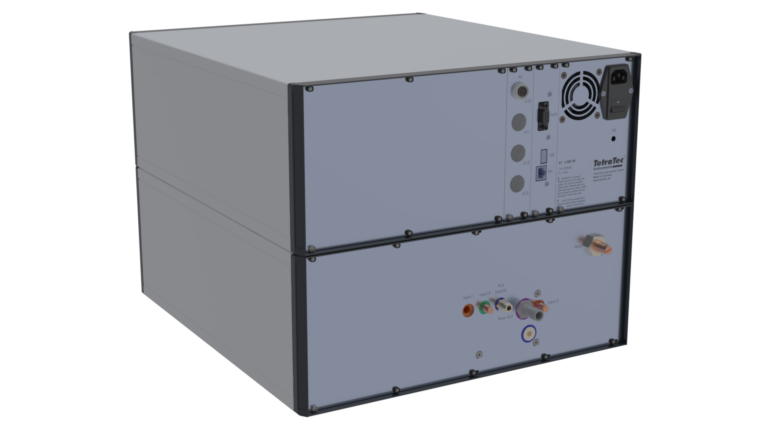

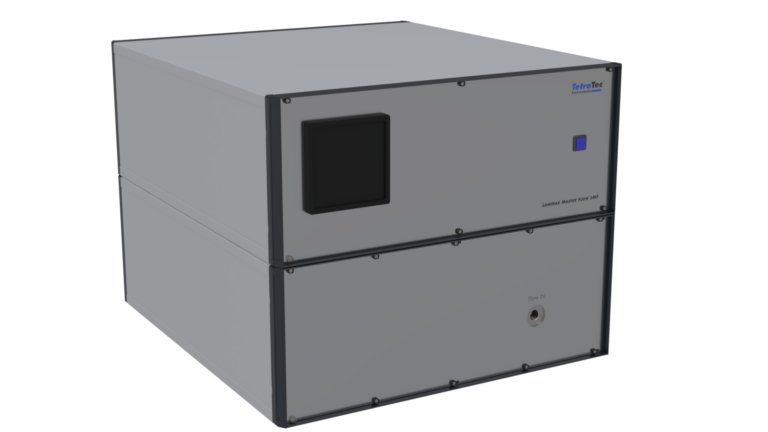

CoM4.Gallery
Flow, suction mode
approx. 5 mL/min – approx. 35 L/min
Turndown
1:200 per unit
Accuracy
< 0.1 % of reading

Overview

The CoM4.Gallery generates defined volumetric flows of air and gases with critically operated nozzles, in suction or pressure mode. The nozzles have a fixed binary graduation and are combined into groups of up to eight; the controller switches the combination that yields the required volumetric flow.

When the pressure ratio across a nozzle falls below the critical value – about 0.528 for air – the flow reaches the speed of sound in the narrowest cross-section. The mass flow then depends only on the inlet pressure and the temperature upstream of the nozzle; pressure fluctuations downstream do not act back on it. Each nozzle works in its own designed cross-section, so critical operation is permanently ensured.

Main features

  • Nozzle without mechanism: no wear and no wear-related drift of the characteristic curve
  • Conversion to standard or reference conditions using the pressure, temperature and humidity of the gas
  • Suction mode with the ambient atmosphere, pressure mode with compressed air; inert, non-flammable gases on request
  • For calibrating flow meters, testing mass flow controllers and the traceability of working standards

Technical data

Flow, suction mode
approx. 5 mL/min – approx. 35 L/min (limits of the design)
accuracy < 0.1 % of reading
uncertainty (k = 2) ±0.5 % of reading
Flow, pressure mode
approx. 12 mL/min – approx. 200 L/min (limits of the design)
accuracy < 0.15 % of reading
uncertainty (k = 2) ±0.65 % of reading
Turndown per unit
1:200 within the limits, specified with the order, e.g. 0.175 – 35 L/min or 5 mL/min – 1 L/min
Lower measurement uncertainty
on request, where applicable through external calibration at a national metrology institute
Atmospheric pressure
The flow rate varies with atmospheric pressure; this is a normal physical effect.
Absolute pressure: inlet pressure in suction mode = calibrated range
0.8 – 1.2 bar abs., 0.01 % FS
Absolute pressure, pressure mode: calibrated range
0.8 – 7 bar abs., 0.01 % FS
Inlet pressure, pressure mode
2.5 – 7 bar abs.
Temperature: calibrated range, accuracy
0 – 50 °C, 0.15 °C
Humidity: calibrated range, accuracy
0 – 90 % RH, 3 % RH
Absolute pressure sensor
0 – 1.2 bar, overload 2 × max. measuring range
Gauge pressure sensor 1
−1 – +1 bar, overload 2 × max. measuring range
Gauge pressure sensor 2 (pressure mode)
0 – 6 bar, overload 2 × max. measuring range
Temperature sensor
PT100, 0 – 75 °C, max. 75 °C
Humidity sensor
0 – 100 % RH, no wetting with water
Inlet temperature
0 – 45 °C
Ambient temperature
0 – +40 °C
Protection rating
IP20
Medium
Suction mode: ambient atmosphere
Pressure mode: compressed air, clean, dry, non-condensing
inert, non-flammable gases on request
Purity requirements (pressure mode)
ISO 8573-1; 5 µm filter + oil/water separator required
Standards and directives
EN 61010-1
Enclosure
19" 8 U desktop enclosure without handles
495.5 × 449 × 354 mm
Process connections
Plastic hoses with 8 mm union nuts
Power supply
90 – 260 VAC, 50/60 Hz, max. 80 W
Electrical connections
IEC connector
USB
USB 2.0 (Type A, for updates)
Controller
CoM4.SYS
Options
Desktop or rack enclosure, with handles if required

Downloads

CoM4.SYS – operation and parameters

Your request

Select what applies – your selection is then entered in your message in the contact form.

  1. Operating mode
  2. Calibration certificate
CoM4.FlowControl
Measuring range
1 mL/min – 64 m³/min
Accuracy (air)
≤ 0.3 – 0.5 % of reading · high end ≤ 0.1 % of reading
Test pressure
up to 20 bar

Overview

The CoM4.FlowControl measures mass and volumetric flows of air and gases and controls them to dynamic setpoints. Measurement is via a measuring section with one or more laminar flow elements; the flow is set by electronic pressure control.

For flow rates below 20 L/min the laminar flow elements can be installed in the rack unit, which simplifies laboratory setups. The internal controller sets the flow via an analogue 0 to 10 V signal. The system is operated on the touch display with apps or via the supplied browser software; results are stored in the control unit.

Main features

  • Results at up to 100 Hz
  • Primary elements other than laminar flow elements can be connected
  • Humidity measurement as an option

Technical data

Measuring range
1 mL/min to 64 m³/min
Accuracy (air)
Standard: ≤ 0.3 – 0.5 % of reading
High end: ≤ 0.1 % of reading
exact value depends on measuring range and medium
Sensors: measuring ranges
Differential pressure: 0 – 20 / 60 mbar
Gauge pressure: 0 – 1 / 2.5 / 4 / 10 / 20 bar
Absolute pressure: 1 – 2.5 / 4 / 10 / 20 bar
Test pressure
up to 20 bar, stable control to 1 mbar
Inlet pressure
0 – 30 bar abs.
Inlet temperature
0 – +40 °C
Test temperature
−10 – +40 °C
Ambient temperature
−10 – +50 °C
Control signal
analogue 0 – 10 V to the internal controller

Downloads

CoM4.SYS – operation and parameters

Your request

Select what applies – your selection is then entered in your message in the contact form.

  1. Task
  2. Gas typeclean, dry, non-corrosive gases
  3. Inlet pressure
  4. Housing
  5. Calibration certificate

For the complete measuring task

Measuring elements and sensors for the CoM4 systems, and calibration in our own laboratory.
