Measurement and Test Technology
Systems and sensors –
for air and gases
Combining electronics, flow measuring elements, sensors and calibration produces systems that solve demanding test tasks as well. All assemblies are modular and can be adapted to changing requirements.

CoM4 systems
Measuring, testing and controlling as a system
The hallmark of the CoM4 family is its computing power: in every measuring cycle the instrument evaluates the complete gas physics. Property models for air and pure gases combine pressure, temperature and humidity into standard volume flow without slowing down the measuring cycle.
-
Measuring systems and calibration units
Measuring and controlling flow and generating it as a standard – with laminar flow elements or critical nozzles.
-
Leak test systems
Leak testing by the pressure decay method – for test pieces with a connection and in the test chamber.
-
Functional test systems
Determining cross-sections and functional characteristics via the flow rate, including at concealed points.
-
Pressure control systems
Setting and holding gauge pressures up to 20 bar, on their own or combined with flow measurement.
Flow elements
Measuring elements and standards for the measuring section
Not every task needs a complete system. The elements of the measuring section are also available individually, calibrated in our own laboratory.
-

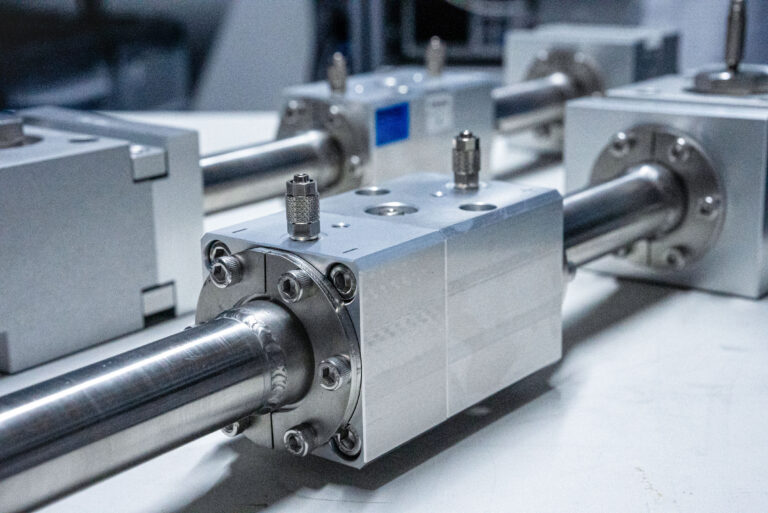

Laminar flow elements
Flow via the differential pressure across a capillary matrix, proportional to volume flow.
-
Differential pressure devices
Nozzles, orifice plates and Venturi tubes to DIN EN ISO 5167 for gases and vapours.
-
Critical flow nozzles
Flow standards to DIN EN ISO 9300 for recurring calibration tasks.
-
Capillary test leaks
Defined leak rates for setting up and monitoring leak tests.
-
Mass flow meters
Thermal mass flow meters and controllers of the red-y series.
Sensors
Pressure, temperature and humidity
The sensors supply the quantities from which the evaluation calculates the density and flow rate of the gas.
-
Electrical pressure transducers
Differential, gauge and absolute pressure, individually or combined in one housing.
-
Temperature and humidity sensors
Pt100 temperature sensors and combined humidity and temperature sensors screwed into the measuring section.
Request
Let us talk about your measuring task.
Every product window has a “Request” tab whose details go into the contact form as a message. For tasks that combine several products, contact us directly here.
Free initial consultation
For any task from a single sensor to a fully automated test cell. We answer queries within 24 hours, Monday to Friday.
