Temperature and humidity of air and gases

Temperature and humidity sensors

Flow measurement requires the temperature of the medium, since together with pressure it determines the density of the gas. For air, the relative humidity is added. For this we supply the resistance temperature sensor WIT-S and the combined humidity and temperature sensor HUMTMP; both screw tightly into the measuring section and are easy to replace.

Temperature and humidity sensors

The sensors at a glance

Select a sensor – the window shows data, documents and the request form.

  • Temperature, Pt100

    WIT-S

    Resistance temperature sensor as a probe with variable immersion depth or as a screw-in sensor

    Measuring range
    −30 – +80 °C
    Accuracy classes
    A, B/3, B/10
    Connection
    G 1/8", G 1/4", G 1/2"
  • Humidity and temperature

    HUMTMP

    Combined humidity and temperature sensor for operation from vacuum to 16 bar

    Temperature
    −10 – +60 °C
    Relative humidity
    0 – 100 % r.h.
    Operation
    vacuum to 16 bar abs.

Temperature and humidity sensor

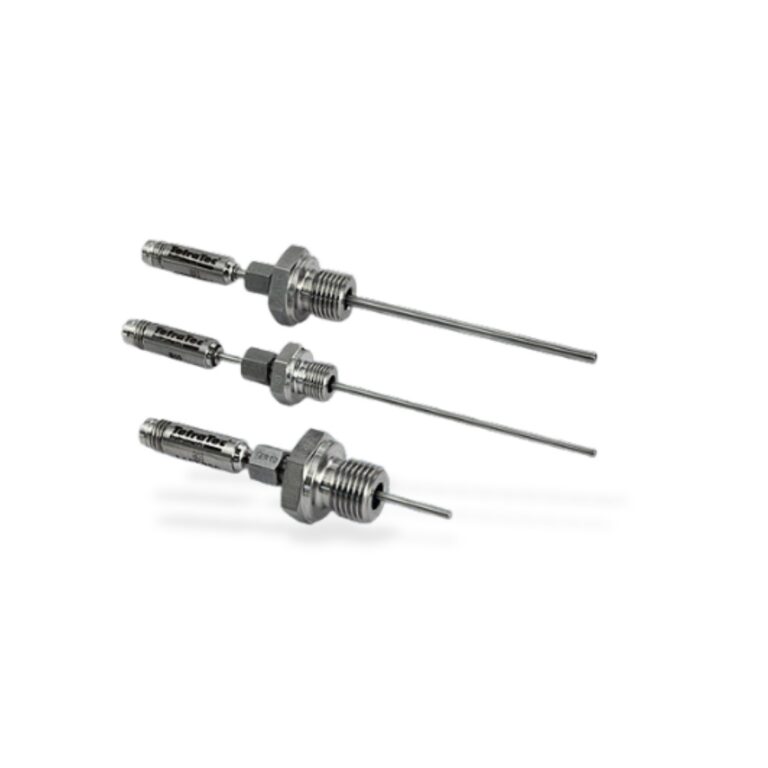

WIT-S

WIT-S
Measuring range
−30 – +80 °C
Accuracy classes
A, B/3, B/10
Connection
G 1/8", G 1/4", G 1/2"

Overview

The WIT-S measures the temperature of the medium with a Pt100 resistance element in the tip of the probe tube. It is available in several accuracy classes as well as housing and connection versions.

The probe version is made entirely of stainless steel and allows variable immersion depths. The screw-in version is more compact and robust.

Main features

  • Variable immersion depth, suitable up to DN 500
  • Screws in directly and tightly
  • Four-wire connection via connector at the end of the probe

Technical data

Sensing element
Pt100
Measuring range
−30 – +80 °C
Accuracy classes
A, B/3, B/10
Connection
G 1/8", G 1/4", G 1/2"
Probe tube
closed or open
Response time
T(99 %) approx. 25 s

Downloads

Your request

Select what applies – your selection is then entered in your message in the contact form.

  1. Version
  2. Connection
  3. Accuracy class
  4. Probe tube
  5. Medium

Temperature and humidity sensor

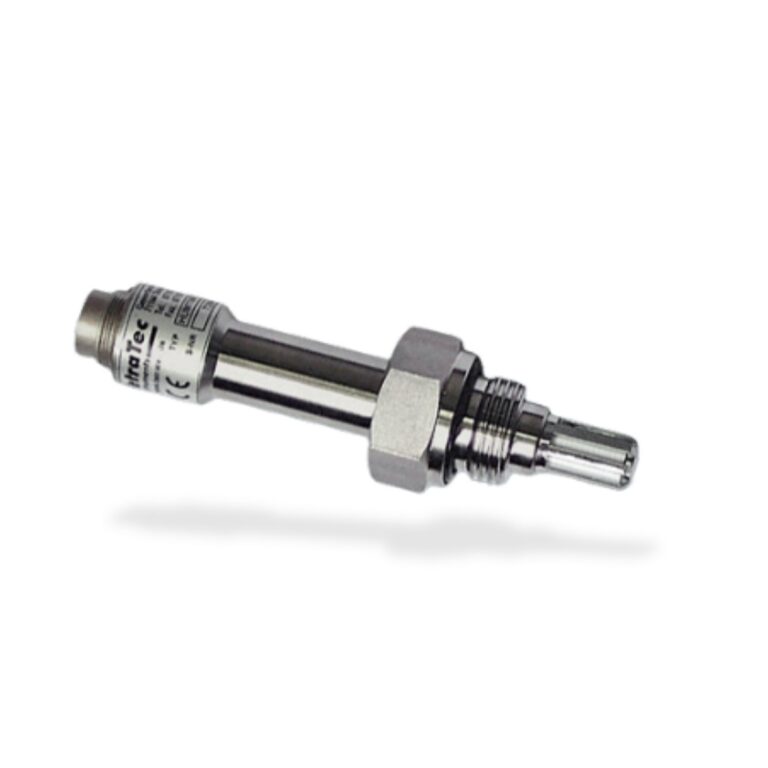

HUMTMP

HUMTMP
Temperature
−10 – +60 °C
Relative humidity
0 – 100 % r.h.
Operation
vacuum to 16 bar abs.

Overview

The HUMTMP measures temperature and relative humidity in one device. It is mounted in the measuring section via a screw-in thread.

The Pt100 resistance element and the capacitive humidity sensor are directly exposed to the medium; a glass feedthrough separates the electronics from the sensors. A filter cap made of plastic or sintered stainless steel protects the sensors from high flow velocities and particles.

Main features

  • One installation point for temperature and humidity
  • Fast response time
  • Pressure-tight connection

Technical data

Temperature range
−10 – +60 °C
Humidity range
0 – 100 % relative humidity
Sensors
Pt100 resistance element, capacitive humidity sensor
Connection
G 1/2"
Operation
vacuum to 16 bar abs.
Burst pressure
over 50 bar
Protection class
IP 68

Downloads

Your request

Select what applies – your selection is then entered in your message in the contact form.

  1. Filter cap
  2. Medium

For a complete measuring section

Temperature and humidity sensors complement the laminar flow element, pressure sensors and evaluation unit to form the measuring section. Calibration is carried out by our calibration laboratory.
